Breather

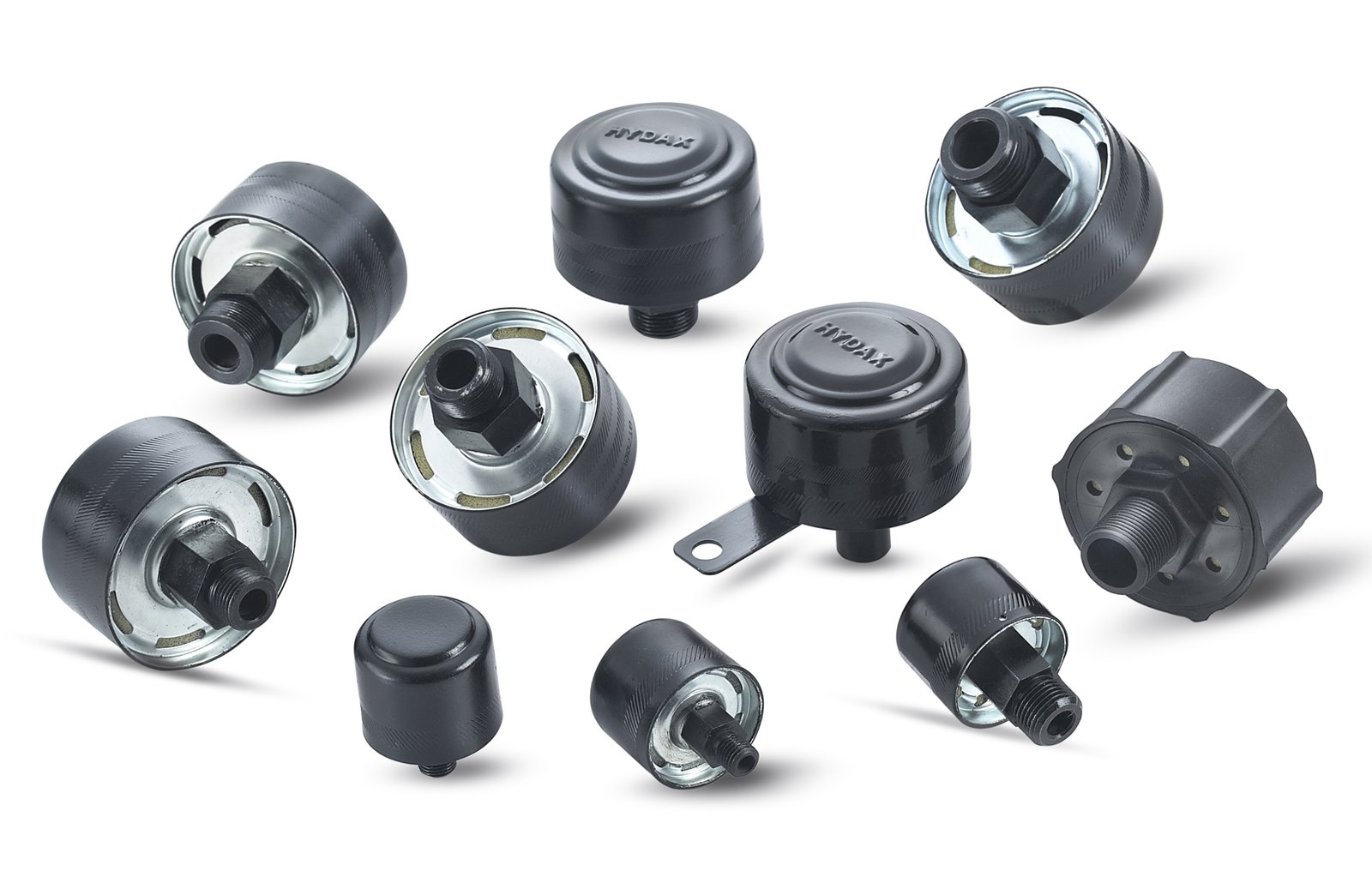

Designed to filter air displacement from hydraulic and lubrication oil reservoirs with displacement capacity ranging from 250 LPM to 700 LPM. Provides filtration up to 5 microns (standard supply: 40 microns).

• Improved cap assembly allows air displacement from underneath
• Powder coated finish for corrosion protection
• Suitable for gearbox applications
• Used in machine tools, mobile equipment and industrial machinery

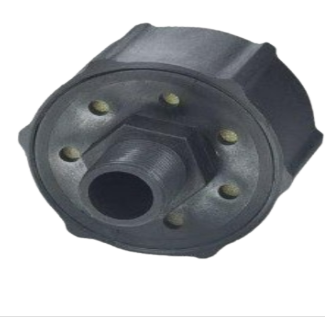

Designed for return and suction of air under pressure with filtration from 40 microns to 5 microns.

• Lightweight and corrosion resistant construction
• Large airflow through specially designed cap slots
• Ideal for industrial environments

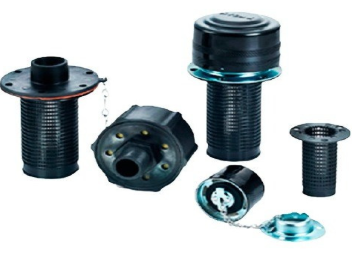

Combination unit for filtering air displacement and straining oil during filling. Available for Tank Top mounting.

• Displacement capacity: 250 LPM and 700 LPM
• Filtration up to 40 microns
• Large airflow through cap design
• Nylon strainer with guard resists corrosion

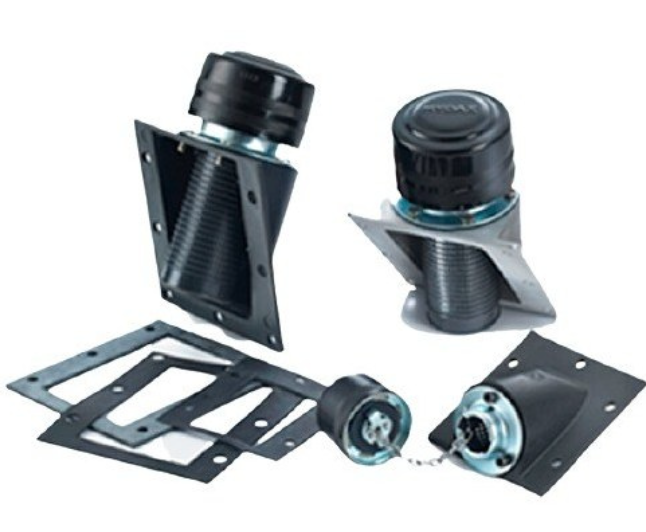

Combination unit for filtering air displacement and straining oil while filling. Available for Side Mounting.

• Displacement capacity: 250 LPM and 700 LPM
• Filtration up to 40 microns
• Improved airflow through underside cap design
• Available strainer materials: Plastic / MS / SS
