Pilot Check Valve

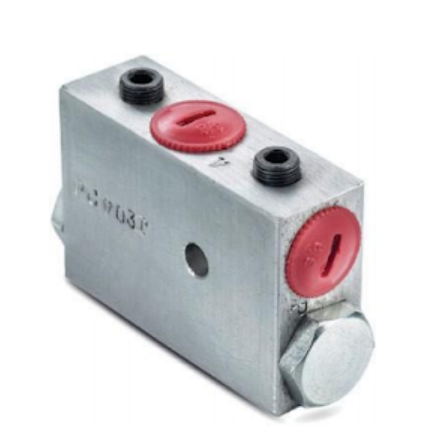

Single Pilot Check Valve (PCV)
Used to lock a cylinder or part of a hydraulic circuit and prevent reverse flow until pilot pressure is applied.
Used for secure load holding and hydraulic locking applications.
In free flow direction through the inlet, the ball becomes unseated and flow exits through the cylinder port.
When the control valve is centered, the load remains locked.
Pilot pressure holds the ball open and allows return flow.
Internally piloted design.
- Damped pilot piston reduces damaging shocks
- Replaceable seats available in selected models
- Directional valve cylinder ports connect to tank in center condition
- Body: Extruded aluminium alloy
- Internal parts: Hardened steel
- Rated Flow: 30 LPM
- Working Pressure: 210 Kg/cm²
- Ratio: 4:1
- Weight: 0.48 Kg
- Ports: 3/8" NPT

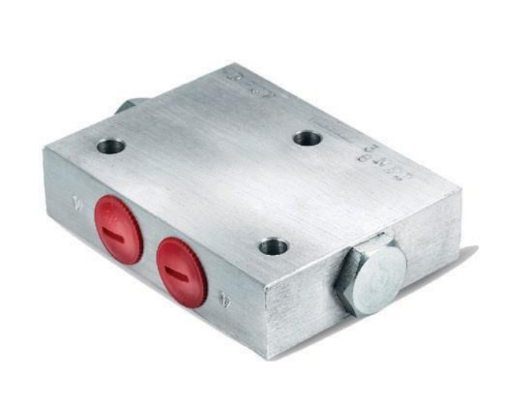

Used to lock a cylinder or hydraulic circuit and prevent reverse flow until pilot pressure is applied.
Provides controlled load holding and reverse flow protection.
During free flow the ball is unseated and flow exits through the cylinder port.
When centered the load remains locked.
Pilot pressure opens the valve and permits return flow.
Internally piloted.
- Damped pilot piston reduces hydraulic shock
- Replaceable seat arrangement
- Reliable load holding performance
- Body: Extruded aluminium alloy
- Internal parts: Hardened steel
- Rated Flow: 30 LPM
- Working Pressure: 210 Kg/cm²
- Ratio: 4:1
- Weight: 0.33 Kg
- Ports: 3/8" NPT
For dimensions, selection and application support, please use Contact
